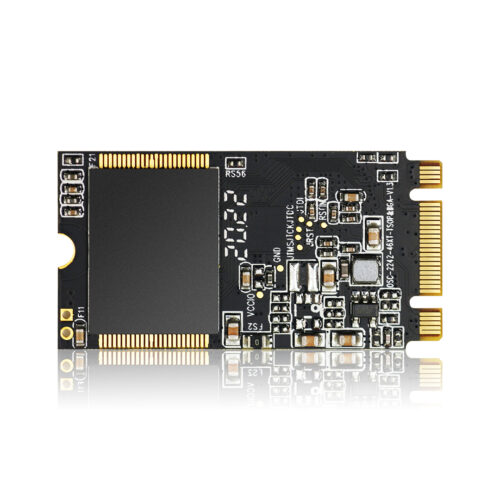

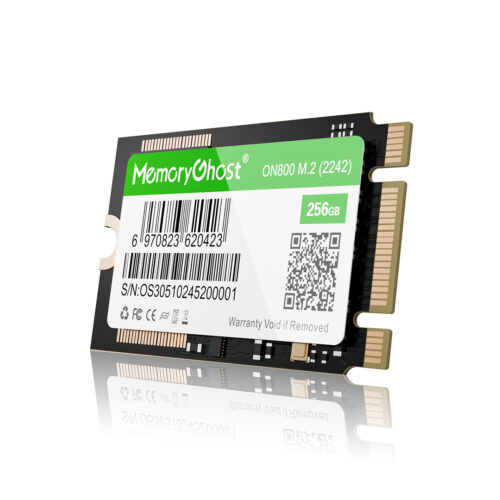

ON800 M.2 SATA 2242 SSD
▪︎ Compact SATA Solution for Space-Constrained Devices
▪︎ M.2 2242 form factor
▪︎ 128GB, 256GB, 512GB, 1TB, 2TB
▪︎ Up to 550MB/s read, 520MB/s write
- 3-Year Warranty
- 100% Tested
- Burn-in Tested
- RoHS Compliant
- Secure Packaging
- Quick RMA Service
Core Technology
ON800 2242 delivers full SATA III performance in the compact M.2 2242 form factor, achieving up to 550MB/s read and 520MB/s write speeds through the 6Gb/s interface. Available in capacities from 128GB to 2TB, it features reliable 3D NAND Flash technology with support for TRIM, NCQ, and S.M.A.R.T. The ultra-compact design with low power consumption makes it perfect for space-constrained and fanless systems, backed by a 3-year manufacturer warranty.
Performance Advantages
Despite its miniature size, ON800 delivers the maximum speeds possible through SATA III, providing reliable performance for embedded systems and compact builds. The 3D NAND technology ensures excellent durability and low power draw, making it ideal for fanless designs and battery-powered devices. With capacities up to 2TB in the tiny 2242 form factor, it offers exceptional storage density for industrial and IoT applications. Perfect for systems where NVMe isn’t required but space is at a premium, delivering proven SATA reliability in minimal footprint.
User Benefits
Transform compact devices with reliable storage that fits where standard drives cannot—from ultra-thin clients to embedded industrial controllers. The low power consumption extends battery life in portable devices while the SATA interface ensures universal compatibility with older systems. Experience smooth, dependable performance for industrial IoT deployments, digital signage, and mini PCs without the complexity or cost of NVMe. Whether building fanless systems, upgrading ultrabooks, or deploying edge computing solutions, ON800 delivers trusted SATA performance in the smallest possible package.
This SSD is designed for desktop and laptop use only. Not intended for server environments.
- Performance based on internal testing with CrystalDiskMark. Actual speeds may vary.
- Total Bytes Written (TBW) values are measured using JEDEC Client Workload (JESD219A).
- Some capacity is used for formatting and firmware, actual usable capacity is less than stated.
- 3-year limited warranty from date of purchase. Data loss is not covered.
- Operating temperature: 0°C to 70°C. Storage temperature: -40°C to 85°C.
| Model | ON800 (2242) |
|---|---|
| Form Factor | M.2 2242 |
| Dimensions | 42mm x 22mm x 3.5mm |
| Interface | SATA Rev.3.0 (6Gb/s) |
| Capacities | 128GB, 256GB, 512GB, 1TB, 2TB |
| Sequential Read/Write | 128GB – 540/500MB/s |
| NAND | 3D TLC |
| Endurance (TBW) | 128GB – 76TBW |
| Storage Temperature | -40°C~85°C |
| Operating Temperature | 0°C~70°C |
| Function Support | TRIM, NCQ and S.M.A.R.T |
| Warranty | 3 years |
